Paralepipedo Reto Retangulo

O que é o paralelepípedo reto retângulo na prática

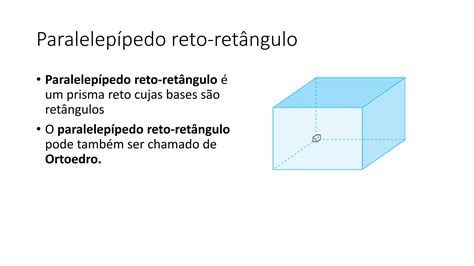

Muita gente define isso como um sólido com seis faces retangulares, mas a definição de livro não ajuda quando você precisa calcular algo de verdade. O paralelepípedo reto retângulo é basicamente um prisma cujas arestas são perpendiculares entre si nos três eixos. A base é um retângulo, as faces laterais também são retângulos, e todas as interseções de arestas formam ângulos retos. É o modelo geométrico mais usado em medições devolume porque se encaixa em praticamente qualquer cenário do dia a dia: caixa, reservatório, sala, betoneira.

Cálculo de volume e área do paralelepípedo reto retangulo

Volume. Multiply base area by height, or simply multiply the three edge lengths: V = a x b x c. That's it. There's no approximation step if your dimensions are exact. I've seen people complicate this with half-formulas and intermediate rounding that adds error before they even finish. Do not round intermediate values. Keep the full precision until the final result and apply significant figure rules at the end. Surface area. The total area is 2(ab + ac + bc). It sounds symmetric for a reason: each pair of dimensions defines a face type, and each type appears twice. If you're calculating material for cladding or painting, use total area. If you need only external wrapping, subtract any faces that are in contact with something else. For example, a tank sitting on a concrete slab loses the bottom face to contact, so you only calculate five faces. Missing that adjustment cost me a reorder once on a custom enclosure project because the installer had already cut the panels to full surface area. I recalculated using only the five exposed faces and corrected the order before the material arrived. That saved roughly R$340 in wasted aluminum composite.

Dia diagonal. A internal diagonal that goes from one vertex to the opposite vertex through the interior is d = (a² + b² + c²). This comes directly from applying the Pythagorean theorem twice, first in the base plane and then through the height. Beginners often confuse this with the face diagonal. Face diagonals exist on each individual rectangle and their lengths differ unless the base is a square. The space diagonal is unique and always the longest straight line inside the solid.

Edge cases that standard tutorials skip

One common mistake is assuming equal diagonals on every face. They are not equal unless the adjacent edges are equal. In a box with dimensions 3, 5, and 8, the base diagonal is (3² + 5²) 5.83, the front face diagonal is (3² + 8²) 8.54, and the side face diagonal is (5² + 8²) 9.43. All three are different. Only opposite faces share the same diagonal length because they are congruent rectangles. Another frequent issue is unit consistency. I once saw a structural estimate fail because one dimension was recorded in centimeters while the others were in meters. The volume came out off by a factor of 100. Always convert every measurement to the same unit before substituting into any formula. If you must work with mixed units for field notes, keep a conversion table on the same sheet and apply the conversion before calculation, not after.

There is also a subtlety with inradius and circumradius that most introductory texts gloss over. A rectangular parallelepiped does not have an insphere unless all three edges are equal, meaning it is a cube. If a = b = c, the inradius is r = a/2. If the edges differ, no single sphere can touch all six faces. The circumsphere exists for every rectangular parallelepiped, and its radius is R = d/2, where d is the space diagonal. I use this property when checking whether a cylindrical drill bit can pass through a rectangular housing: the minimum clearance diameter equals the space diagonal, not the largest face diagonal.

Practical workflow I actually use

I start by listing the three orthogonal edge lengths with units. Then I compute the three pairwise products, double each sum, and verify the area. For volume, I multiply the three lengths directly. If the object is hollow, like a tank with wall thickness t, I subtract the inner dimensions: a' = a - 2t, b' = b - 2t, c' = c - 2t, and compute V_inner = a'b'c'. The material volume is V_outer - V_inner. This assumes uniform wall thickness and right angles throughout. If the walls taper or the corners are filleted, this method overestimates capacity by a small amount, usually under 2 percent for industrial tanks, but you should measure the actual inner geometry when precision matters. When I need the diagonal for routing or alignment purposes, I compute it with the full formula and then check it against a physical measurement with a tape or laser. The computed value serves as a tolerance baseline. If the measured diagonal deviates by more than 0.5 percent, the frame is likely out of square and needs realignment before any downstream work. I have caught misaligned casework this way on two separate jobs. The math did not lie, and the field verification confirmed it within minutes.

When this model breaks down

The rectangular parallelepiped assumes perfect orthogonality and flat faces. Real construction deviates. Settlement, thermal expansion, and fabrication tolerances introduce angular errors that make the formulas slightly inaccurate. For high-precision applications like metrology fixtures or optical benches, you should treat the calculated values as nominal and measure actual geometry with a CMM or a total station. The geometric model remains useful for early estimation, but it is not a substitute for verification in tight tolerance work. Another limitation is that the model does not account for internal partitions, protrusions, or cutouts. If you are estimating material for a box with a built-in shelf or a handle recess, you must adjust the surface area and volume manually by subtracting or adding the relevant prismatic volumes. The base formulas still apply component-wise, but you cannot rely on a single plug-and-chug step for complex assemblies. Break the object into simple rectangular blocks, calculate each, and combine them. This is faster and less error-prone than trying to derive a single custom formula.

Quick reference summary

Volume: V = a·b·c.
Total surface area: A = 2(ab + ac + bc).
Space diagonal: d = (a² + b² + c²).
Circumradius: R = d/2.
Inradius: exists only when a = b = c, in which case r = a/2. Keep the units consistent, do not round prematurely, and verify right angles in the field when accuracy matters. That covers the essentials without turning a straightforward calculation into unnecessary complexity.
