Triangles with Parallel Lines: Why They Keep Coming Up in Real Projects

You'll run into this situation pretty much everywhere once you start doing anything beyond basic geometry. A triangle, a transversal line cutting through it, and a line segment drawn parallel to one of the sides. It sounds trivial. The applications, though, show up in drafting, engineering drawings, surveying, and even some graphics programming tasks. Here is how to actually work with it without overcomplicating things.

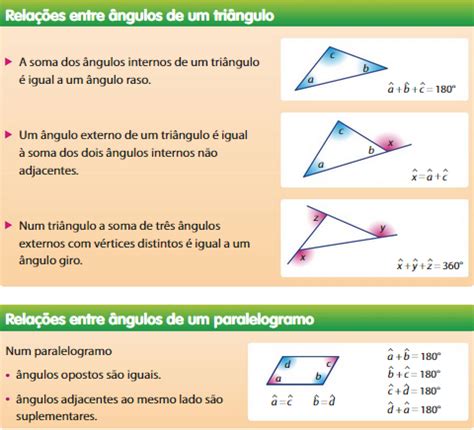

The core idea behind um triângulo com lados paralelos

Take any triangle. Draw a line parallel to one of its sides, intersecting the other two sides. What you've created is a smaller triangle inside the original that is similar to it. That similarity is the entire engine here. The ratio of corresponding sides is preserved. If the parallel line cuts the two sides at points that divide them in a 2:1 ratio, the smaller triangle's sides are exactly two-thirds the length of the original triangle's corresponding sides. That's it. No special theorem beyond Thales' intercept theorem is required. This same principle extends when you have multiple parallel segments or when the parallel line extends outside the triangle. The ratios still hold, you just have to be careful about which segments you're comparing. Beginners frequently mix up internal and external division points and end up with inverted ratios. I've seen that mistake cost people hours on a simple layout task.

How to construct and calculate in practice

Let me walk through the actual process I use, starting from a known triangle and needing to find an unknown length. Step one is identifying which side the parallel line references. Label your triangle vertices clearly — A, B, C is standard. Say the parallel line intersects sides AB and AC at points D and E respectively, and DE is parallel to BC. Your first job is to write down the ratio you know. If AD = 4 and DB = 2, then AB = 6 and the ratio AD/AB = 4/6 = 2/3.

Step two is applying that ratio to every corresponding pair. DE/BC = 2/3, so if BC measures 15 units, DE must be 10. The altitude from A to DE follows the same 2/3 ratio relative to the altitude from A to BC. Area scales with the square of the ratio, so the area of triangle ADE is (2/3)^2 = 4/9 of the area of triangle ABC. People sometimes forget the squaring part and apply the linear ratio directly to area. That error shows up constantly in exam settings and in quick field calculations. When the parallel line doesn't start from a vertex but cuts across two extended sides, you use the same ratio logic but you have to track directed segments. Positive and negative signs matter for position, even though lengths stay positive. Coordinate geometry makes this cleaner if you're working with numerical values rather than pure geometry.

Here is a concrete coordinate example. Triangle vertices at A(0, 6), B(0, 0), C(8, 0). Draw a line parallel to BC at height y = 2. This line intersects AB at D(0, 2) and AC at E. Line AC has the equation y = -3/4x + 6. Setting y = 2 gives x = 16/3, so E is at (16/3, 2). The length DE is 16/3. The length BC is 8. The ratio is (16/3)/8 = 2/3, which matches the height ratio 2/6. Everything checks out consistently.

Where this actually matters

I use this setup regularly when reading architectural plans. A floor plan might show a triangular room with a structural beam running parallel to one wall. You need the beam length to order material. Rather than measuring on site, you take the wall lengths from the plan, determine where the beam connects using the elevation data, and apply the ratio. It saves going back to the site for a measurement that should already be derivable from the drawings. In GIS and mapping work, similar-triangle reasoning appears when you're projecting features from a scanned map onto a coordinate system. The scaling is often non-uniform across the page, but locally, within a triangular region, the parallel-line property gives you a reliable interpolation method.

A specific edge case that burned me once

I was working on a cadastral survey where the parcel boundary formed a triangle and a new access road was planned parallel to one side. The problem was that the parallel line had to pass through a fixed point that was outside the original triangle. Standard textbook examples always place the parallel segment inside. When the point is outside, the "smaller triangle" is actually larger than the original, and the ratio exceeds 1. I initially applied the internal ratio formula and got a length that was physically impossible for the site. The workaround was straightforward once I spotted it: I treated the configuration as an external division problem and used the property that the ratio of distances from the apex to the parallel line still equals the ratio of the corresponding sides, regardless of whether the intersection falls inside or outside the original triangle. I recalculated using directed segments on a coordinate plane, which made the sign issues disappear entirely. That approach — coordinate-based with directed segments — is something I now default to whenever the parallel line might fall outside the triangle's bounds. It handles both internal and external cases without requiring separate logic branches.

Common pitfalls to avoid

The first trap is assuming the parallel line always creates a smaller triangle. It doesn't. Depending on where you place it, you can get a larger similar triangle or a trapezoid depending on which sides the line intersects. Read the problem statement carefully about which sides are cut. The second trap involves area calculations. As mentioned, area scales with the square of the linear ratio. If you remember only the linear relationship and apply it to area, your result will be wrong roughly half the time in my experience.

A third issue is when the triangle is given in non-standard orientation — rotated, reflected, or with vertices in unusual order. The math doesn't care about orientation, but your intuition might. Always redraw or re-label the triangle so the parallel side is horizontal. It reduces cognitive load significantly during calculation.

When this method breaks down

The parallel-line similarity approach only works when the line is genuinely parallel. If you're dealing with an approximate construction — say, from hand-drawn field notes where "parallel" is really "roughly parallel" — the ratios will drift. In those cases, you're better off using coordinate-based measurement or least-squares adjustment rather than assuming exact similarity. The error compounds quickly if you chain multiple ratio calculations together. Another limitation: this method gives you lengths and areas but tells you nothing about angles beyond what's already encoded in the similarity. If you need angle measurements at the intersection points, you have to compute them separately, usually with the law of sines or cosines, or through vector dot products if you're working in coordinates.

Quick reference for triângulo com lados paralelos

When you have triangle ABC with DE parallel to BC where D is on AB and E is on AC: AD/AB = AE/AC = DE/BC = k (the similarity ratio)

Area(ADE)/Area(ABC) = k² The trapezoid DBCE has area equal to Area(ABC) × (1 - k²). This last formula is useful when you need the area between the parallel line and the base, which comes up more often than the textbook examples suggest.

If you need to implement this in code, the coordinate approach is the most robust. Represent each vertex as a 2D point, compute the direction vector of the side you want parallel to, and solve for the intersection using parametric line equations. It handles all orientations and internal/external cases in a single unified framework without conditional branches.
